Product Overview

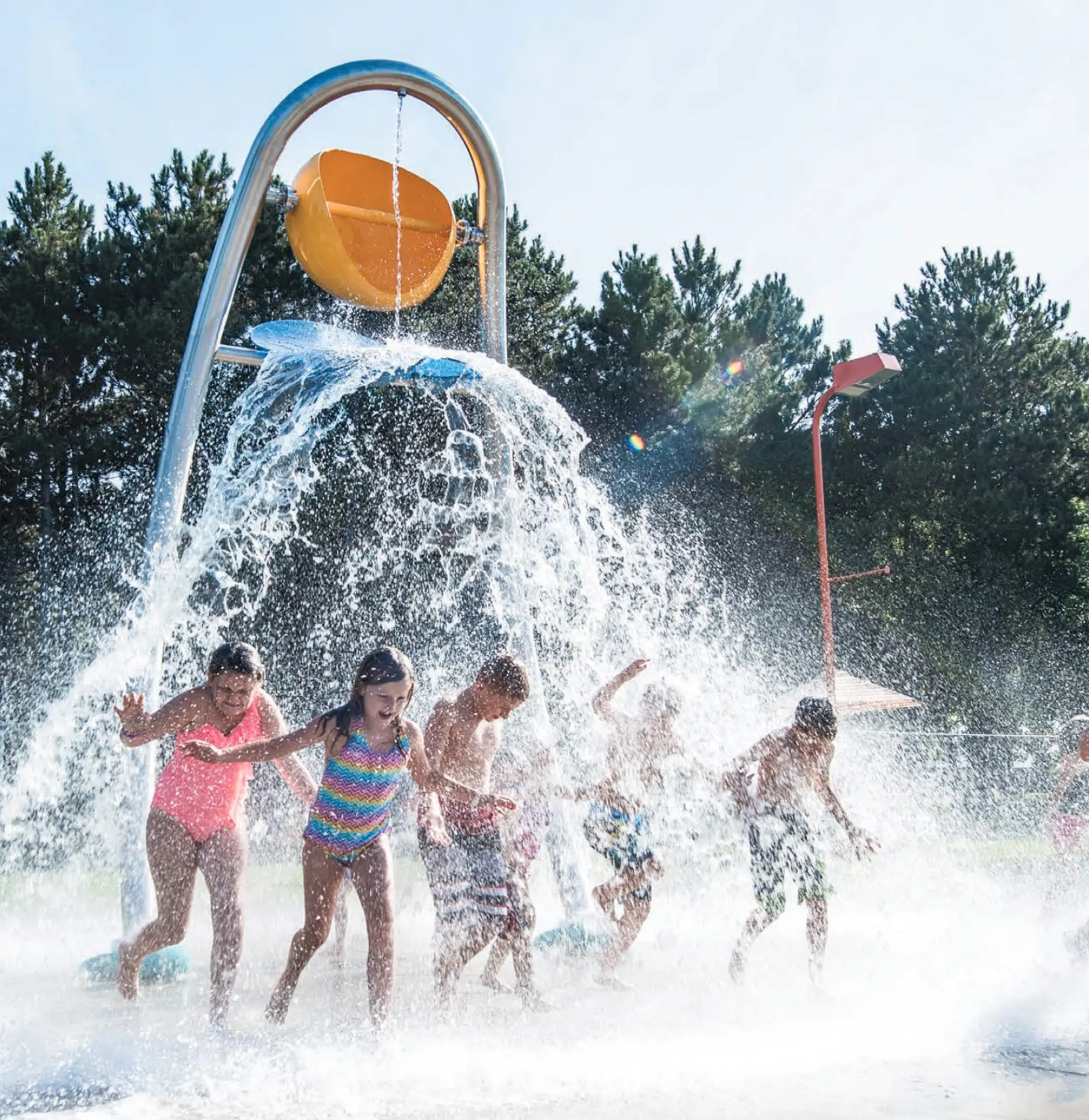

The Arc Tipping Bucket with Splash Canopy is an interactive aquatic play feature designed for zero-depth splash pads, water park kids’ play zones, municipal park splash zones, and resort pools. Supported by a tall arc-shaped steel frame, the structure features a top-mounted tipping bucket that automatically dumps water onto a mid-level curved diverter canopy. The falling water diffuses upon impact, creating a 360-degree umbrella rain curtain and a cool splash cascade that delights visitors of all ages.
Key Features and Highlights
Dual-Stage Water Diverter Canopy
Unlike conventional tipping buckets that dump water straight down, this system incorporates a curved deflector disc directly beneath the bucket. Water impacts the disc and smoothly disperses outwards into a wide umbrella rain curtain, making the splash experience both visually impressive and refreshing.
Gravity-Driven Auto-Tipping Balance
Operates automatically based on water accumulation and gravity balance without needing motorized assistance. As water fills the top bucket, it reaches its balance threshold and tips forward, generating continuous anticipation and drawing crowds of children underneath.
Sleek Arc Aesthetic & High-Contrast Colors
The minimalist curved arch frame, combined with a bright yellow bucket and vibrant blue diverter disc, brings a contemporary, playful aesthetic to any aquatic play setting.
Zero-Depth Splash Pad Compatibility
Specifically designed for zero-depth splash pads and shallow wading pools with zero drowning hazards, providing a safe, unobstructed environment for toddlers, children, and parents.
Heavy-Duty Engineering & Weather Resistance
Constructed with 304 stainless steel / hot-dip galvanized steel tubing coated with a fluorocarbon outdoor finish. The bucket and diverter disc are molded from premium FRP to withstand chlorine corrosion, UV exposure, and continuous water pressure.
Technical Specifications
| Product Parameter | Specification & Remarks |
| Product Dimensions | Approx. 2.2m x 1.8m x 3.8m |
| Splash Coverage Zone | Approx. 15 – 25 m² |
| Target Age Group | All ages (Ideal for ages 3-14 and families) |
| Hourly Capacity | Open interactive zone (Approx. 150 – 300 visitors / hour) |
| Material – Support Frame | 304 Stainless Steel / Q235B hot-dip galvanized steel tube with outdoor fluorocarbon coating |
| Material – Bucket & Canopy | High-strength Fiberglass Reinforced Plastics (FRP) with high-gloss UV-resistant gel coat |
| Water Supply Requirement | Flow rate: 15 – 25 m³/h, concealed base inlet connection |
| Compliance & Safety | Complies with GB 8408 and GB/T 18168 water amusement equipment safety standards |
B2B Customization & Turnkey Engineering
Custom Colors & Flow Configuration
We offer customized color schemes for the frame, bucket, and diverter canopy to align with your venue’s thematic style, along with adjustable water flow setups to control tipping frequency.
Complete Splash Pad Engineering
From initial site assessment and splash pad hydraulic layout design to equipment manufacturing, global logistics, on-site setup guidance, and ongoing service support, we provide complete end-to-end turnkey delivery.
Application Scenarios
- Zero-Depth Splash Pads & Spray Parks
- Water Park Children’s Play Zones
- Municipal Parks & Community Aquatics
- Resort Hotels & Family Beach Clubs
