1. Product Overview

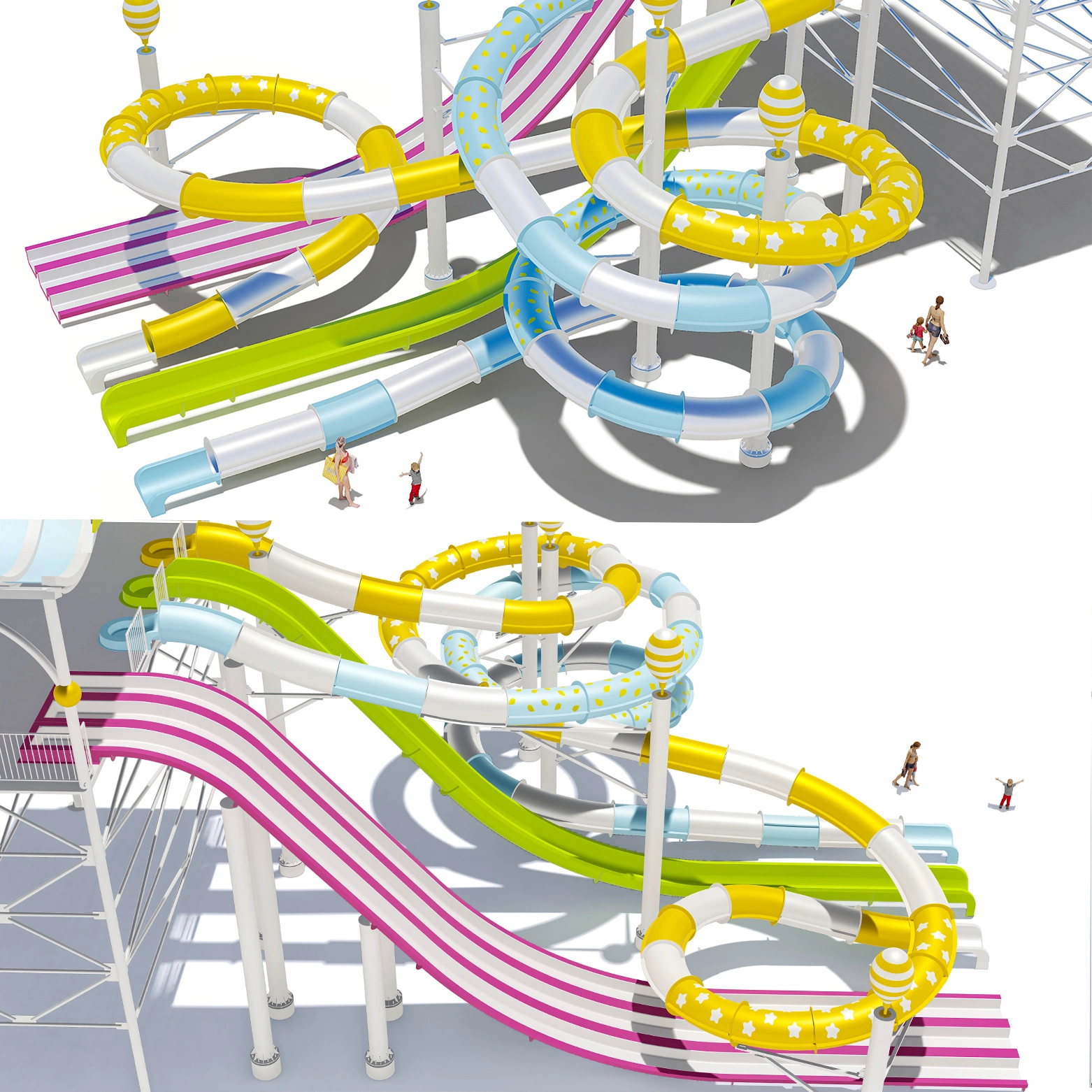

Designed specifically for medium-to-large water parks, resorts, and aquatic entertainment centers, this combination water slide system integrates a 3-lane high-speed racing slide, multi-level spiral closed tube & open flume slides, and high-speed body slides onto a single steel platform.
Two Custom Themes Available:
- Enchanted Ice & Snow Theme: Sky blue, snow white, lemon yellow, and magenta accents featuring snowflake/pine crest decorations and balloon light-pole posts.
- Vibrant Rainbow Theme: High-contrast orange, yellow, bright blue, and emerald green design for maximum visual impact under sunlight.
2. Product Specifications
| Parameter | Specification |
| Model Number | WS-CB-2026A |
| Footprint / Dimensions | Approx. 35m × 22m (Customizable based on site layout) |
| Platform Height | 8.0m – 12.0m (Customizable) |
| Slide Configurations | 1. 3-Lane Wave Speed Racer Slide 2. Spiral Closed Tube Slide 3. Spiral Open Flume Slide 4. High-Speed Drop Body Slide |
| Main Materials | High-Grade Fiberglass (FRP) + Hot-Dip Galvanized Steel Framing |
| FRP Thickness | 6mm – 8mm |
| Ride Method | Body Slide / Mat Racing |
| Capacity | Approx. 700 – 1000 Persons/Hour |
| Safety Compliance | GB/T 18168, EN13814, ASTM Compliant |
3. Key Features & Advantages
1. High-Capacity Multi-Combo Design
Multiple slide flumes share a central tower platform, maximizing ground space efficiency and dramatically reducing customer wait times during peak hours.
2. Premium Seamless FRP & Weather-Resistant Gel Coat
Hand-layup FRP with UV-resistant, anti-corrosion gel coat. Super-smooth interior joints provide a seamless and safe sliding motion.
3. Robust Galvanized Steel Structure
Heavy-duty hot-dip galvanized steel tubing resists rust, water erosion, and salt spray, providing robust structural safety in harsh outdoor environments.
4. Applications
- Large-scale Theme Water Parks (Star Attraction)
- Hot Spring Resorts & High-End Beach Hotels
- Municipal Aquatic Centers & Commercial Water Playgrounds
