Product Overview

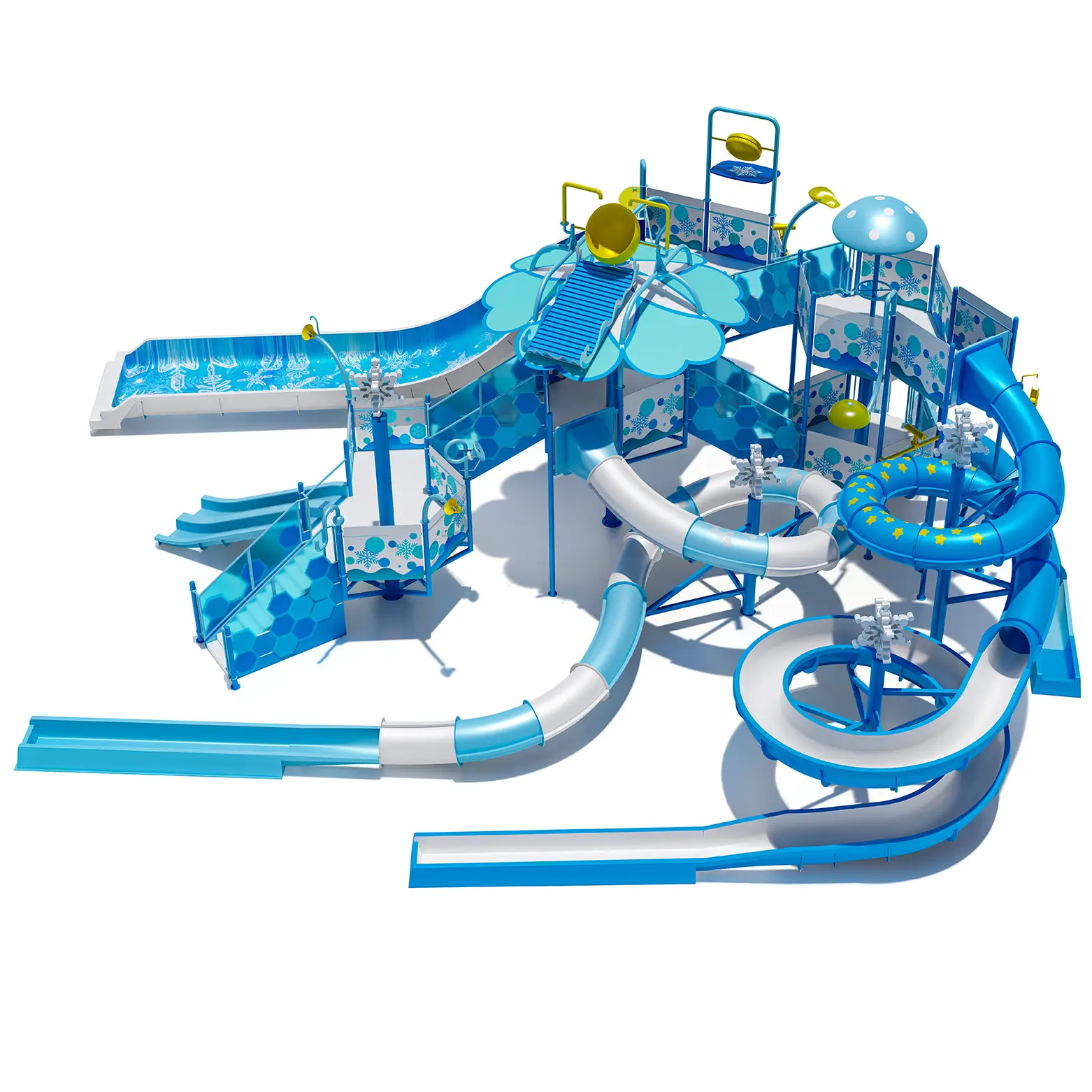

The Ice & Snow Theme Large Water House is a large-scale interactive aquatic playground inspired by refreshing arctic landscapes and polar fairy tales. Designed with an elegant blue-and-white color palette, artistic snowflake patterns, and smooth mushroom canopy roofs, it delivers a visually therapeutic, ice-cool polar park atmosphere. Spanning a spacious footprint of approximately 560 m² with a height of 9.5 meters, it seamlessly integrates wave flumes, spiral enclosed tube slides, and multi-lane parallel racer slides, alongside an elevated tipping bucket and engaging spray features for a multi-layered polar water experience.
Core Highlights & Key Advantages
Polar Aesthetics & Refreshing Visual IP
- Combines refreshing blue-and-white tones with snowflake motifs and mushroom-shaped roofs, delivering a striking arctic visual appeal.
- Serves as a highly recognizable summer icon for water parks, naturally attracting family audiences and photography-minded visitors.
Diverse Slide Configurations for All Thrill Levels
- Features wavy open flumes, twisting enclosed tube slides, and side-by-side straight racers to cater to both high-speed seekers and gentle riders.
- Flumes are precision-molded with high-grade FRP, ensuring smooth, wear-resistant interior surfaces for comfortable sliding.
High-Energy Splash Bucket & Interactive Water Elements
- Positioned at the upper tower level, a massive tipping bucket periodically dumps torrents of water to create an exhilarating waterfall effect.
- Distributed spray flower bouquets, water cannons, and multi-pattern nozzles across all deck levels invite active guest-to-guest interaction.
Multi-Tiered Spatial Layout & High Throughput
- Built with a multi-tiered platform architecture linked by interconnected stairways and bridges, providing varied adventure routes.
- Spacious deck design allows multiple slide runs to operate simultaneously, managing crowds smoothly and maximizing operational throughput.
Industrial-Grade Durability & Comprehensive Safety
- Slide flumes utilize premium unsaturated polyester resin FRP with an anti-slip, wear-resistant gelcoat layer (thickness ≥ 6mm).
- Load-bearing frame is built from Q235B carbon steel, fully welded and hot-dip galvanized to resist water corrosion and UV degradation.
- Equipped with continuous high protective railings and slip-resistant stair treads to ensure absolute safety for parents and children.
Technical Specifications
| Parameter Item | Specification & Details |
| Product Dimensions | 23.7m x 23.7m x 9.5m |
| Equipment Footprint Area | Approx. 560 m² |
| Target Age Group | All age groups |
| Capacity / Throughput | 520 persons / hour |
| Materials: Slide Flumes | Unsaturated polyester resin FRP, anti-slip and wear-resistant surface gelcoat layer, thickness ≥ 6mm |
| Materials: Support Structure | Q235B carbon steel fully welded, hot-dip galvanized surface anti-corrosion treatment |
| Safety & Compliance | Design, manufacturing, and installation comply with GB 8408-2018 Safety Code for Large Amusement Rides and GB/T 18168 General Technical Conditions for Water Amusement Facilities |
Commercial Value & Applications
- Peak Summer Appeal: The arctic ice and snow motif provides strong visual cooling in hot weather, quickly attracting crowds.
- Exceptional Throughput Efficiency: Accommodates up to 520 guests per hour within a compact 560 m² footprint, yielding high operational revenue.
- Broad Project Adaptability: Perfectly suited for large water parks, theme resorts, ocean parks, and outdoor aquatic centers.
