1. Product Overview

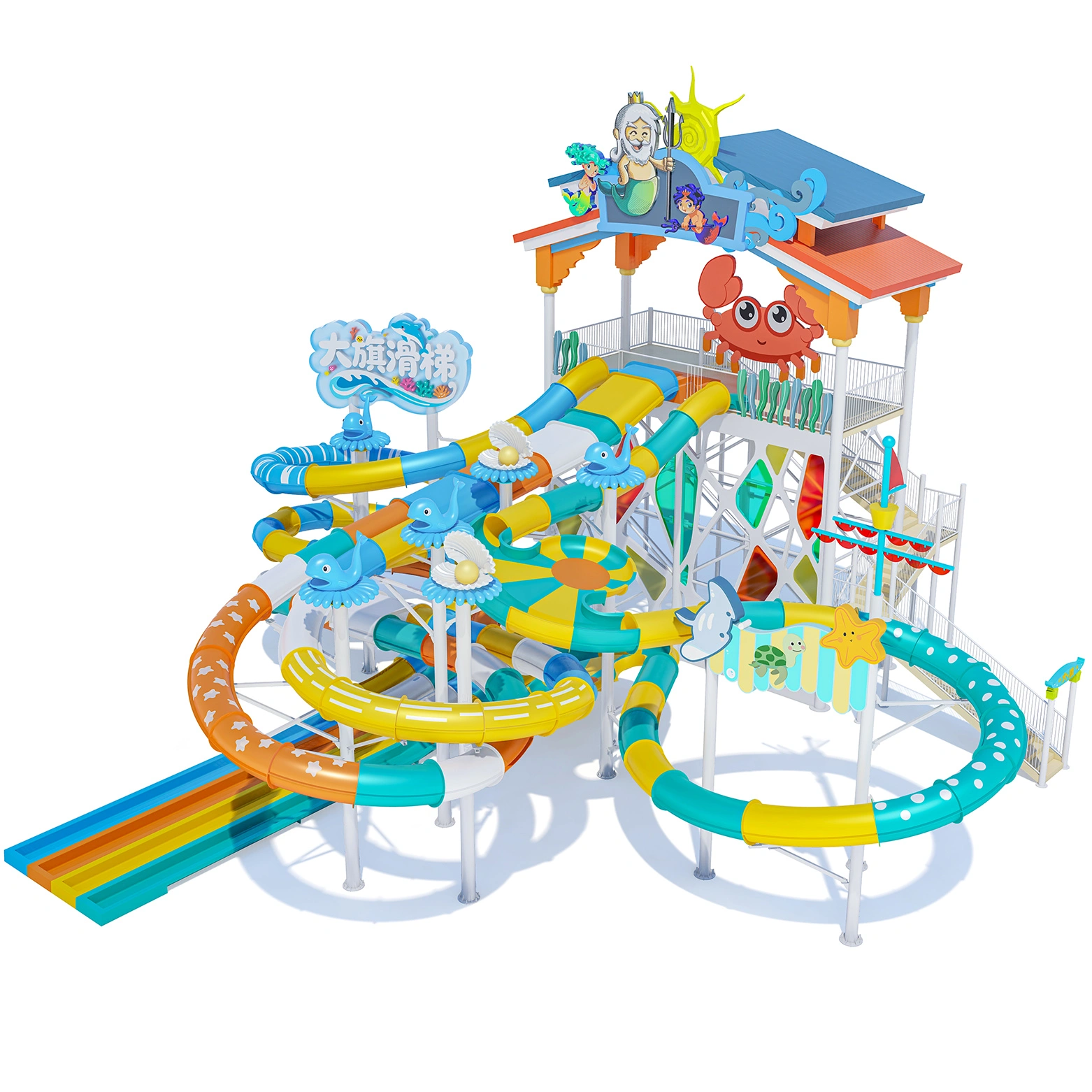

The Ocean Kingdom Multi-Slide Aqua Complex is a flagship water park installation that combines high-speed racing, centrifugal thrill, winding curves, and family interaction. Inspired by ancient ocean mythology and colorful tropical sea life:
- Iconic Mythological Header: Crowned with a majestic Poseidon sculpture holding a trident, a graceful mermaid, and a giant red crab, paired with custom “Daqi Slide” marine signage to form an unforgettable park centerpiece.
- Immersive Marine Decorations: Pillar tops and guardrails feature sea turtles, stingrays, starfish, and water-spraying whale decorations.
- Diamond Crystal Cladding: Wrapped in tinted geometric diamond acrylic panels, casting shimmering sunlight reflections while providing comfortable shade for queueing riders.
Integrating a 3-lane rainbow racer slide, a vortex body bowl slide, a high-speed polka-dot spiral tube, and a winding open flume slide, this complex serves as a high-capacity landmark for modern aquatic destinations.
2. Slide Components Breakdown
- 3-Lane Rainbow Racer Slide
- Features: Parallel racing lanes in Blue, Yellow, and Orange with an extended splashdown deceleration channel.
- Experience: Allows 3 riders to race head-to-head in a high-speed, thrilling, yet smooth sprint.
- Vortex Space Bowl Slide
- Features: Large radial swirl bowl in yellow and cyan, entered via an enclosed high-speed launch tube.
- Experience: Riders swirl along the bowl wall via strong centrifugal force before dropping through the central exit.
- High-Speed Dot-Pattern Spiral Tube
- Features: Enclosed spiral tube styled with translucent white polka-dots on cyan/yellow bodies.
- Experience: Natural sunlight creates dynamic light patterns inside as riders twist through multiple 360-degree turns.
- Starry Winding Open Flume Slide
- Features: Combined open and semi-enclosed flume embellished with star patterns and color stripes.
- Experience: Offers gentle curves and wide visual views, ideal for junior thrill-seekers and families.
3. Key Features & Advantages
- Aerospace-Grade FRP Material: Built with high-strength E-glass fiber and imported Ashland/DSM anti-UV gelcoat for maximum durability, smooth sliding surfaces, and fade resistance.
- Heavy Hot-Dip Galvanized Steel: All columns and platform structures are galvanized inside and out with fluorocarbon coating to withstand high-humidity and pool-chemical environments.
- High Capacity & High ROI: Multi-slide design accommodates 600 – 800 riders per hour, effectively reducing queueing time and maximizing park guest satisfaction.
- Strict Safety Compliance: Engineered in strict compliance with GB/T 18168-2017, EN1069, and ASTM F2376 international safety standards.
4. Technical Specifications
| Parameter Item | Specification Value |
| Model Number | DQ-WS-2026-OK (Ocean Kingdom) |
| Footprint Area | Approx. 32m × 28m (Customizable based on site layout) |
| Platform Height | 11.5 meters (Main Launch Platform) |
| Total Slide Length | Approx. 380 meters total length |
| Rider Capacity | 600 – 800 riders per hour |
| Water Flow Rate | 280 – 350 m³/h continuous circulation |
| Power Requirement | Approx. 37 kW (Pumps & Architectural Lighting) |
| FRP Material | Heavy-duty E-glass fiber (8-10mm) + Ashland/DSM Gelcoat |
| Steel Coating | Hot-dip Galvanized + Fluorocarbon Coating |
5. Application & Full Lifecycle Support
- Applications: Commercial Water Parks, Tourism Resorts, Theme Park Aquatic Zones, Luxury Hotel Pools, Municipal Aquatics Centers.
- Daqi Full Lifecycle Service: From initial project consulting, hydraulic layout, and customized 3D design to precision manufacturing, on-site installation, safety certification, and lifetime maintenance support.
